RCGN series hot filling machine

RCGN series hot filling machine



Art. No. :
Product's packing :
Certificate approvaled :
Trade Terms : |EXW|FOB|
Payment Terms : |L/C|T/T|
MOQ : 1set





Product Info

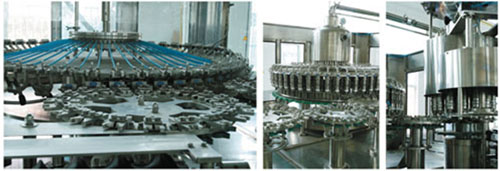

CGN series PET bottle water filling machine


General description
The series of products are the integrated rinsing, filling and capping machine, mainly suitable for producing the bottled mineral water, pure water, fruit juice, and wine and so on.

Technical parameters

Model
(CGN)
16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-15 60-60-15 72-72-18 80-80-20
Production capacity (600ml)
(bph)
3000 6000 10000 14000 18000 24000 30000 36000 40000
Filling accuracy ≤±5mm
PET bottle size (mm) Bottle diameter φ50-φ92 Height 150-320
Cap
shape
Plastic cap
Rinsing with water pressure (Mpa) 0.2-0.25
Wash bottles water consumption (kg/h) 800 1600 2500 3500 4000 4500 6000 7500 8000
Air pressure (Mpa) 0.4
Air consumption (m3/min) (0.6Mpa) 0.2 0.2 0.25 0.3 0.3 0.3 0.4 0.5 0.5
Motor power (kw) 2.57 3.37 4.37 5.87 5.87 7.87 11.37 15.37 15.37
Weight (kg) 3500 4500 6000 7000 8000 9500 13000 15000 16000
Dimension (L*W*H) (mm) 2200×1600×2700 2500×2000×2700 2800×2300×2700 4000×2450×2850 4400×2800×2850 5350×3400×2850 5000×5000×3000 7100×6250×3000 7700×6750×3000
